| Chip | EM4305/Htag 256 |
| Dimensions | 30mm |
| Material | TPU |
| IP rating | IP 67 |
| Application Temp | -40-81℃ |
| Operating Temp | -40~71°C |
| Memory | 512 bits |
| Frequency range with the best performance | 125 kHz |
| IC Life | Write endurance of 100,000 cyclesDate retention of 50 years |

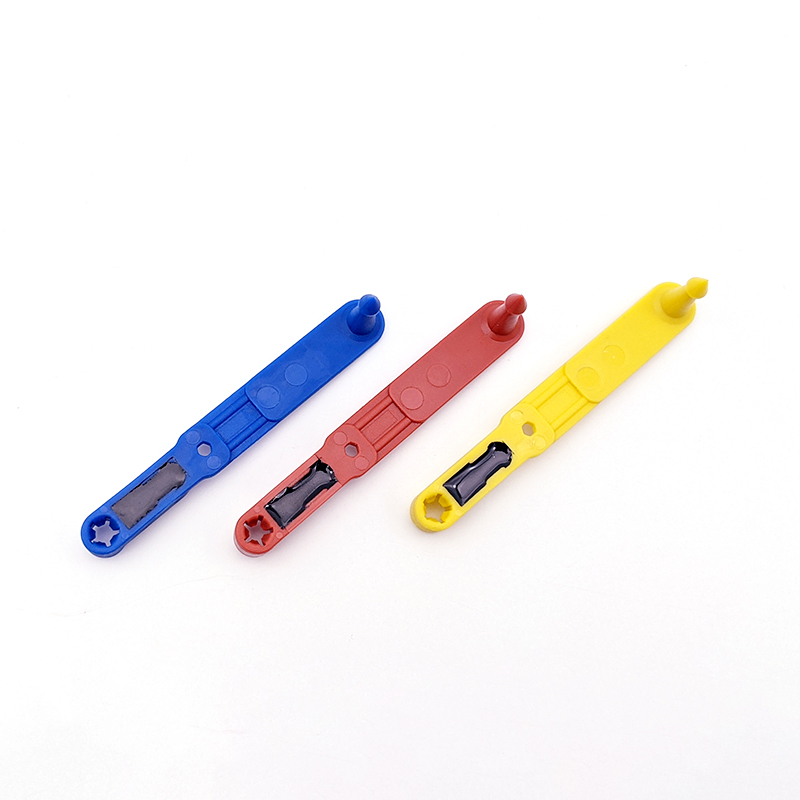

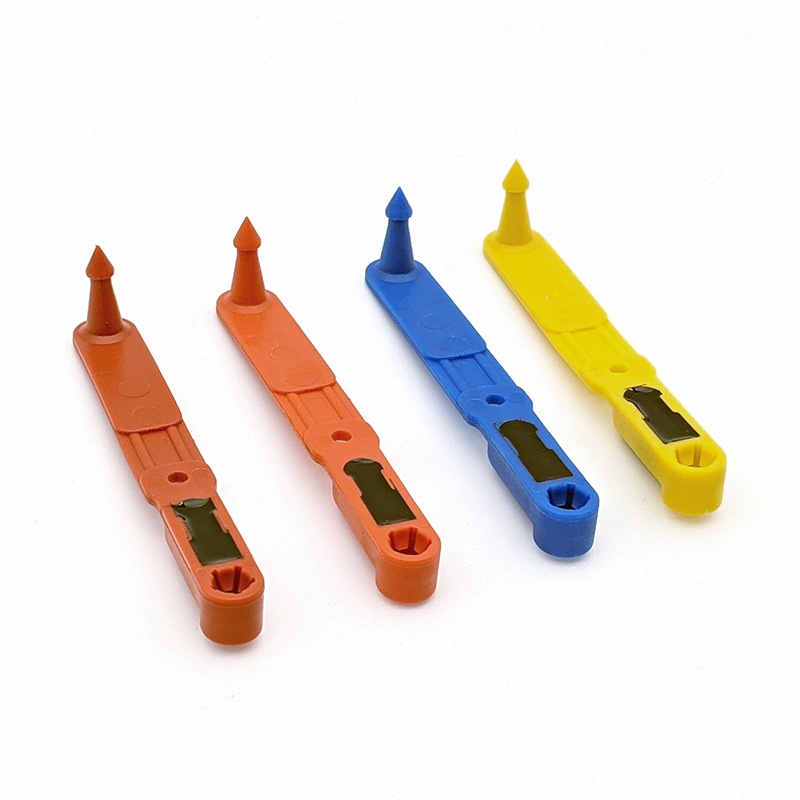

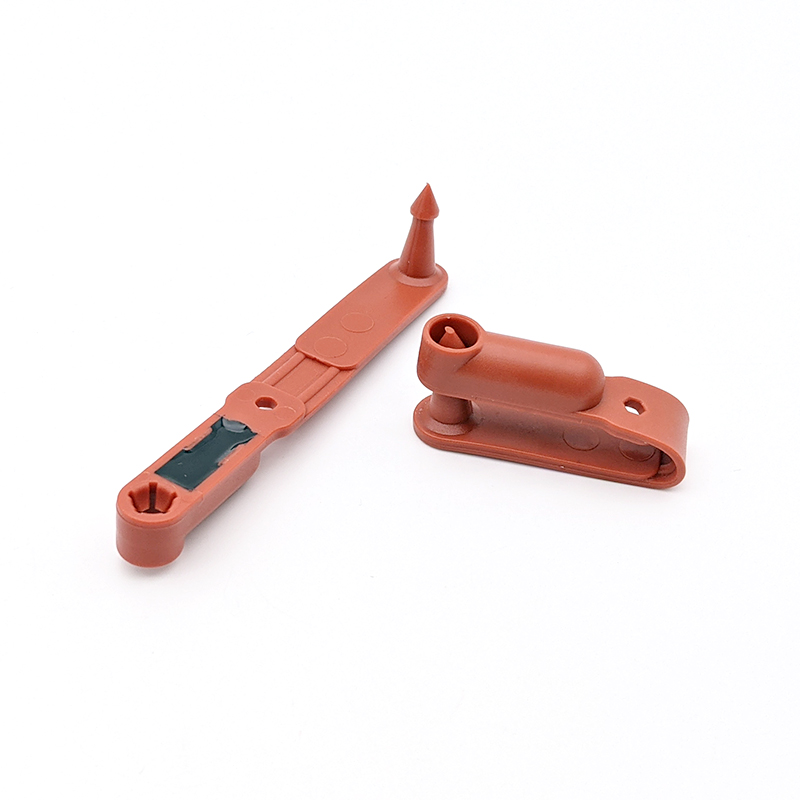

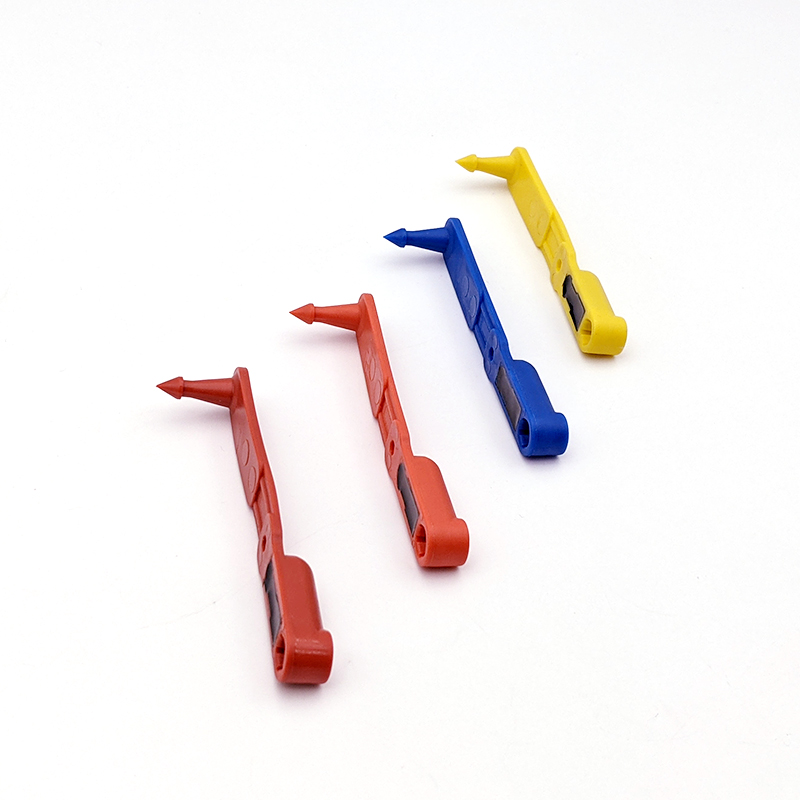

RFID Animal Tags such as pigs, pigeons, cattle, and sheep are specially used for livestock tracking management. As well as identification of poultry, electronic consumption, product identification, animal management, food traceability, breeder breeding, feeding/prevention, and control.
| Chip | EM4305/ Htag 256 |
| Dimensions | 80mm |
| Material | TPU |
| IP rating | IP 67 |
| Application Temp | -40-81°C |
| Operating Temp | -40~71°C |
| Memory | 512 bits |
| Frequency range with the best performance | 125 kHz |
| IC Life | Write endurance of 100,000 cyclesDate retention of 50 years |
Feature:
1. Data can be read and written, easy to use
2. Easy installation, low loss rate
3. The product is small in size and light in weight, which does not affect the activities of the wearers
4. Adopt safe materials, process layer-upon-layer disinfection, and ensure normal use
5. Each serial number can maintain independence, to facilitate national supervision of animal product safety
Application:
Optional:
*Personalized customization: offset printing, silk screen printing, spray printed numbers, etc.
*Provide Thermal Rewritable process and thickness options.
*Provide data write service options
*Provide other services on request
| LF 125KHZ Chips（portion） | |||
| Chip Name | Protocol | Capacity | Frequency |
| TK4100 | ISO 11784/11785 | 64 bits | 125 kHz |
| EM4200 | ISO 11784/11785 | 128 bits | 125 kHz |
| EM4305 | ISO 11784/11785 | 512 bits | 125 kHz |
| EM4450 | ISO 11784/11785 | 1K | 125 kHz |
| Temic T5577 | ISO 11784/11785 | 330 bits | 125 kHz |
| HITAG 1 | ISO 11784/11785 | 2048 bits | 125 kHz |
| HITAG 2 | ISO 11784/11785 | 256 bits | 125 kHz |
| HITAG S256 | ISO 11784/11785 | - | 125 kHz |
| HITAG S2048 | ISO 11784/11785 | - | 125 kHz |
| HF 13.56 MHz Chips（portion） | |||
| Chip Name | Protocol | Capacity | Frequency |
| MIFARE Ultralight EV1 | ISO14443A | 80 byte | 13.56 MHz |
| MIFARE Ultralight C | ISO14443A | 192 byte | 13.56 MHz |
| MIFARE Classic S50 | ISO14443A | 1K | 13.56 MHz |
| MIFARE Classic S70 | ISO14443A | 4K | 13.56 MHz |
| MIFARE DESFire | ISO14444A | 2K/4K/8K | 13.56MHz |
| ICODE SLIX | ISO15693 | 1024 bits | 13.56 MHz |
| ICODE SLI | ISO15693 | 1024 bits | 13.56 MHz |
| ICODE SLI-L | ISO15693 | 512 bits | 13.56 MHz |
| ICODE SLI-S | ISO15693 | 2048 bit | 13.56 MHz |
| I CODE SLIX2 | ISO15693 | USER 2528bits | 13.56 MHz |
| NTAG213 | ISO14443A | 180 bytes | 13.56 MHz |
| NTAG215 | ISO14443A | 540 byte | 13.56MHz |
| NTAG216 | ISO14443A | 180 or 924 bytes | 13.56 MHz |
| NTAG213TT | ISO14443A | 180 bytes | 13.56 MHz |
| NTAG424 DNA TT | ISO14443A | 416 bytes | 13.56 MHz |
| FeliCa Lite S RC-S966 | ISO/IEC 18092 | 224 bytes | 13.56MHz |
