Home> RFID Tree Nail Tag

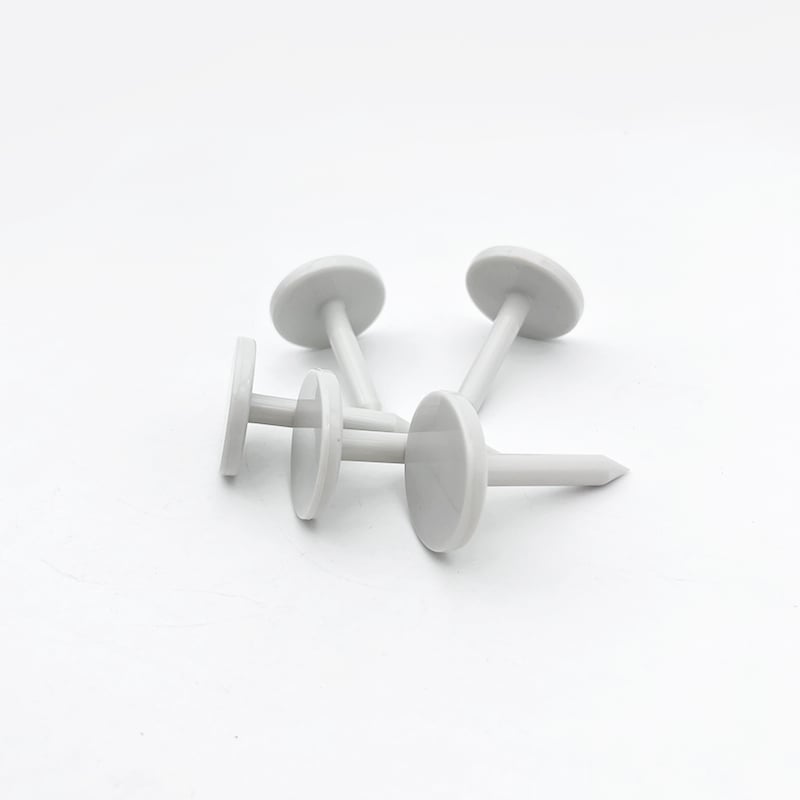

RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management
RFID tree nail tag for tree management

RFID tree nail tag for tree management

Product name RFID  Nail Tag
Chip NTAG213/H3/R6P(customized)
Dimensions 22mm/28mm(customized)
Color White/Black(customized)
Material ABS/Nylon+Glue
Frequency 125KHZ/13.56MHZ(According to the chip)
Reading Distance HF:0-5CM
UHF:0-30CM
(The reader and the environment the label is located affect the reading distance )

RFID tree nail tags are suitable for application in the management of ancient trees, due to the characteristics of nail tags, more used in the logistics of wood tracks. Because of the localization of RFID chips, the transport of some precious wood can sign the nail mark into the wood, logistics personnel at any time, management personnel can control the logistics timber position at any time.

Product name RFID  Nail Tag
Chip NTAG213/H3/R6P(customized)
Dimensions 22mm/28mm(customized)
Color White/Black(customized)
Material ABS/Nylon+Glue
Frequency 125KHZ/13.56MHZ(According to the chip)
Reading Distance HF:0-5CM
UHF:0-30CM
(The reader and the environment the label is located affect the reading distance )

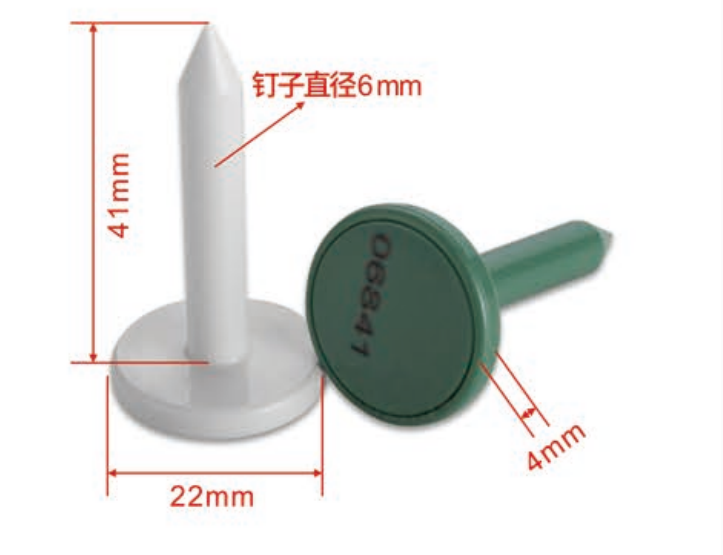

RFID tree nail tag for tree management supplier

Feature:

*More efficient, save human resources.
*The data is more real and less error-prone.
*RFID global uniqueness ensures the unique identity of each tree. Data can be stored and can be automatically collected in harsh environments.
*Cultivation management: the conservators conduct scientific cultivation on the production cycle of each ancient tree, and provide cultivation contents and services according to the data of RFID tags to ensure the quality of famous and ancient trees.

Application:

*All Kinds of Non-metallic Goods Management
*Security Inspection
*Package Identification
*Park Management
*Tree Management
*Asset Management

RFID tree nail tag for tree management factory

LF 125KHZ Chips(portion)
Chip Name Protocol Capacity Frequency
TK4100 ISO 11784/11785 64 bits 125 kHz
EM4200 ISO 11784/11785 128 bits 125 kHz
EM4305 ISO 11784/11785 512 bits 125 kHz
EM4450 ISO 11784/11785 1K 125 kHz
Temic T5577 ISO 11784/11785 330 bits 125 kHz
HITAG 1 ISO 11784/11785 2048 bits 125 kHz
HITAG 2 ISO 11784/11785 256 bits 125 kHz
HITAG S256 ISO 11784/11785 - 125 kHz
HITAG S2048  ISO 11784/11785 - 125 kHz
HF 13.56 MHz Chips(portion)
Chip Name Protocol Capacity Frequency
MIFARE Ultralight EV1 ISO14443A 80 byte 13.56 MHz
MIFARE Ultralight C ISO14443A 192 byte 13.56 MHz
MIFARE Classic S50 ISO14443A 1K 13.56 MHz
MIFARE Classic S70 ISO14443A 4K 13.56 MHz
MIFARE DESFire ISO14444A 2K/4K/8K 13.56MHz
ICODE SLIX ISO15693 1024 bits 13.56 MHz
ICODE SLI ISO15693 1024 bits 13.56 MHz
ICODE SLI-L ISO15693 512 bits 13.56 MHz
ICODE SLI-S ISO15693 2048 bit 13.56 MHz
I CODE SLIX2 ISO15693 USER 2528bits 13.56 MHz
NTAG213  ISO14443A 180 bytes 13.56 MHz
NTAG215  ISO14443A 540 byte 13.56MHz
NTAG216  ISO14443A 180 or 924 bytes 13.56 MHz
NTAG213TT ISO14443A 180 bytes 13.56 MHz
NTAG424 DNA TT ISO14443A 416 bytes 13.56 MHz
FeliCa Lite S RC-S966 ISO/IEC 18092 224 bytes 13.56MHz
