Product name |
RFID ABS keyfob |
|
Chip |
LF HF (customize) |
|
Material |
ABS |
|
IP Rating |
IP 67 |
|
Application Temp |
-40~220℃ |
|
Operating Temp |
-40~70℃ |
|
Memory |
256bit 180 bits |
|
Frequency range with the best performance |
125khz 13.56mhz (depend on the chip) |
|
IC Life |
Write endurance of 100,000 cycles Date retention of 50 years |

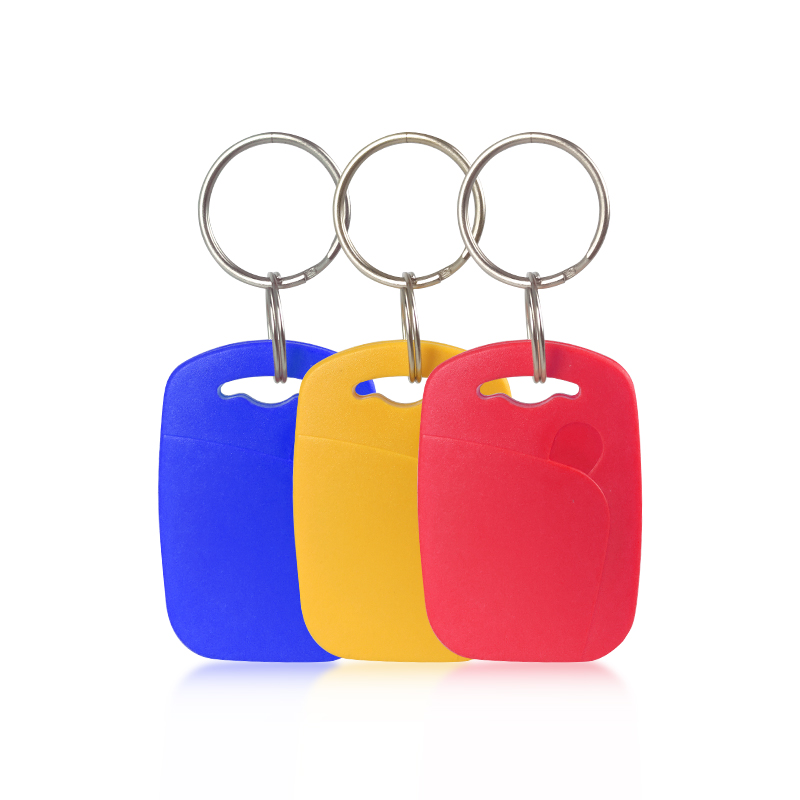

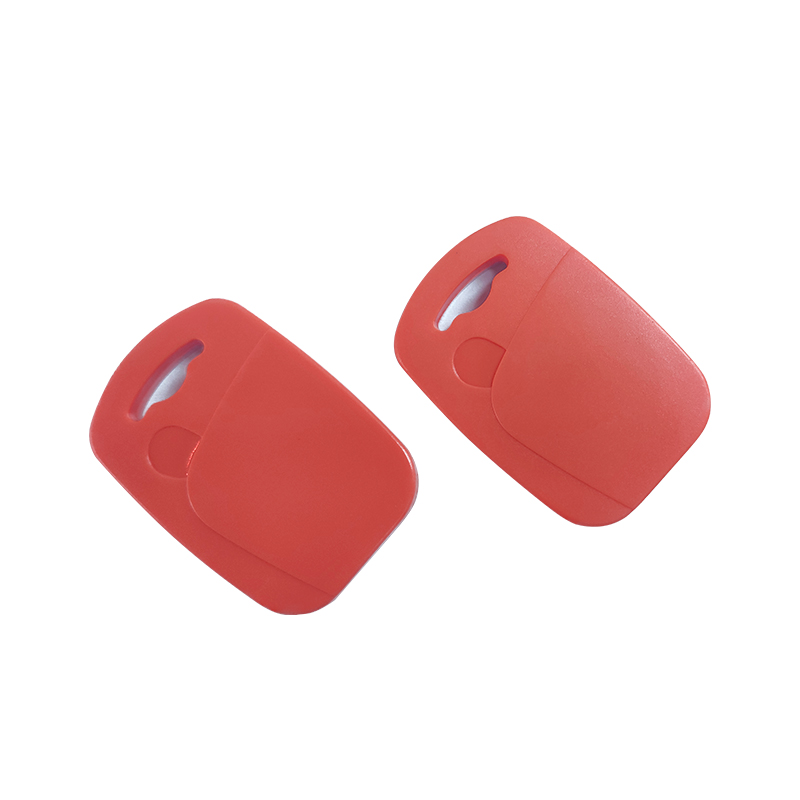

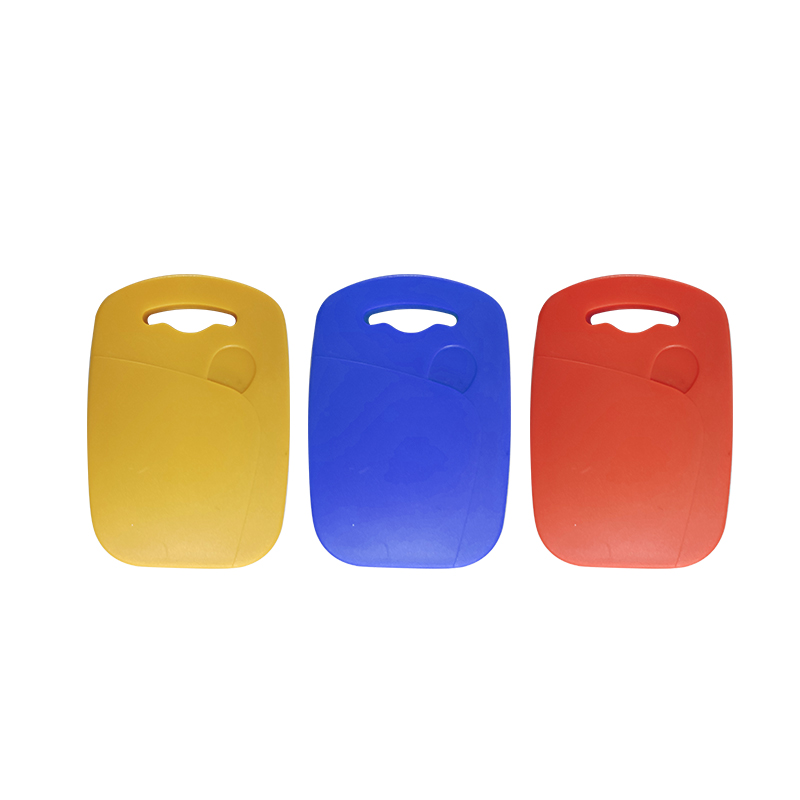

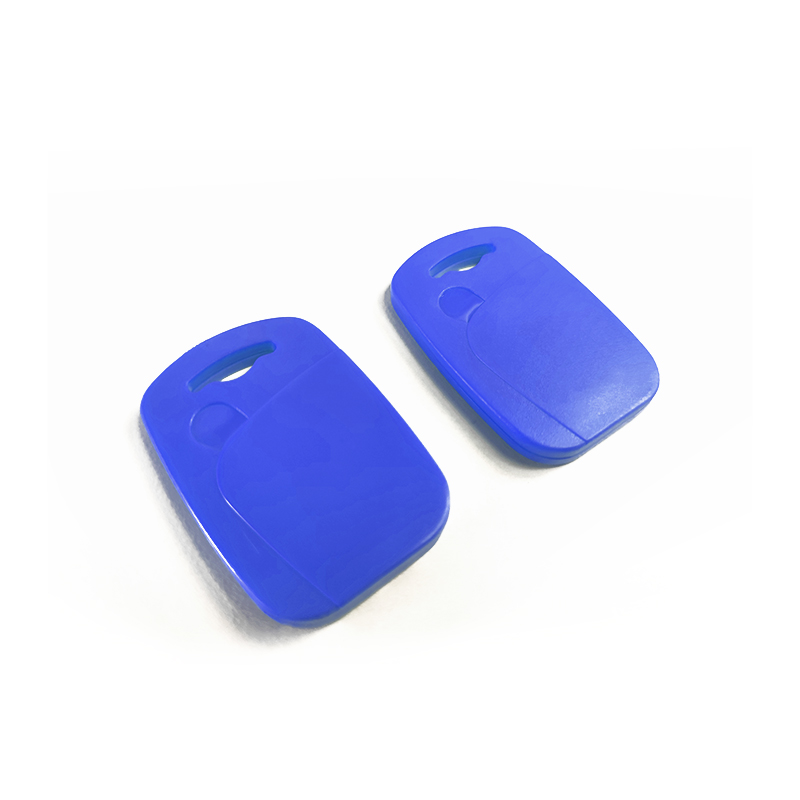

Detailed description:
RFID ABS Key Fobs are the extension products of ISO card, it is combined with an ABS house, chip, and antenna. This ABS RFID key fob can laser engrave or paint chip code on one side, which can save time for checking each key fob holder`s ID code, which greatly improves management efficiency. RFID ABS Key Fobs are widely used for RFID management applications, such as access control, identification, loyalty system, etc.
The keyfob is one type of various special-shaped tag, which is encapsulated by an ABS shell, filled with epoxy resin, and combined by ultrasonic welding. It can be applied with silk screen printing, inkjet printing, and laser engraving. It's dustproof, waterproof, and anti-vibration. There are dozens of shapes to your choice and can be embedded with various types of chips inside.
|
Product name |
RFID ABS keyfob |
|
Chip |
LF HF (customize) |
|
Material |
ABS |
|
IP Rating |
IP 67 |
|
Application Temp |
-40~220℃ |
|
Operating Temp |
-40~70℃ |
|
Memory |
256bit 180 bits |
|
Frequency range with the best performance |
125khz 13.56mhz (depend on the chip) |
|
IC Life |
Write endurance of 100,000 cycles Date retention of 50 years |
| LF 125KHZ Chips（portion） | |||
| Chip Name | Protocol | Capacity | Frequency |
| TK4100 | ISO 11784/11785 | 64 bits | 125 kHz |
| EM4200 | ISO 11784/11785 | 128 bits | 125 kHz |
| EM4305 | ISO 11784/11785 | 512 bits | 125 kHz |
| EM4450 | ISO 11784/11785 | 1K | 125 kHz |
| Temic T5577 | ISO 11784/11785 | 330 bits | 125 kHz |
| HITAG 1 | ISO 11784/11785 | 2048 bits | 125 kHz |
| HITAG 2 | ISO 11784/11785 | 256 bits | 125 kHz |
| HITAG S256 | ISO 11784/11785 | - | 125 kHz |
| HITAG S2048 | ISO 11784/11785 | - | 125 kHz |
